The UG Block is a rugged, purpose-built standoff designed to help radiographers reduce geometric unsharpness (Ug) in compliance with a wide range of industry standards—including API/ASME, ISO 17636, AS 2177, and other relevant radiographic codes.

By increasing the source-to-object distance (SOD) without affecting the object-to-film distance (OFD), the UG Block improves image clarity and repeatability—without adding unnecessary complexity to your setup.

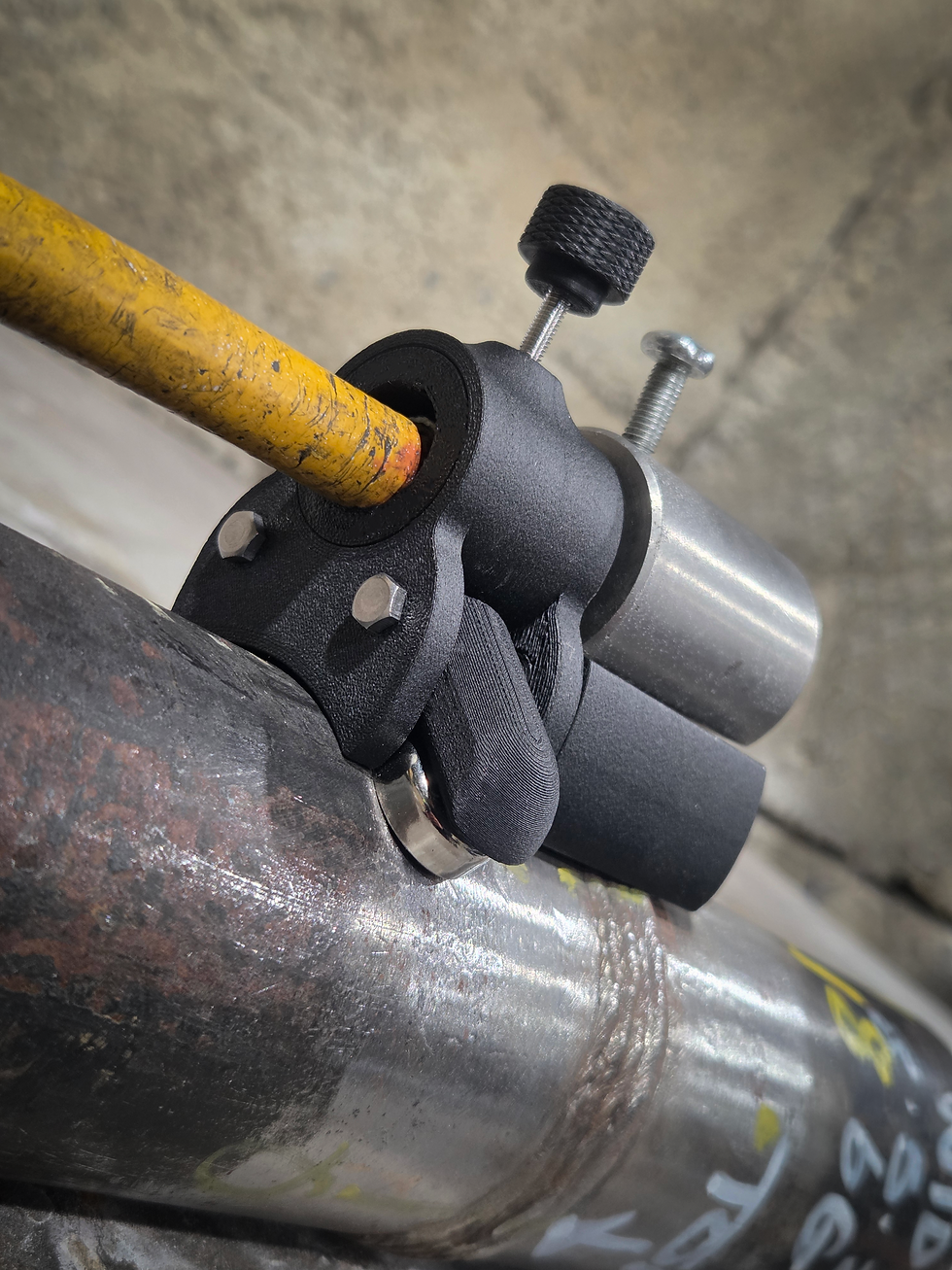

Each unit is manufactured from carbon fiber-reinforced nylon, selected for its durability in harsh site environments. The block features a rubber-lined insert at the guide tube interface, offering tolerance and grip for compatibility with a wider range of collimator profiles.

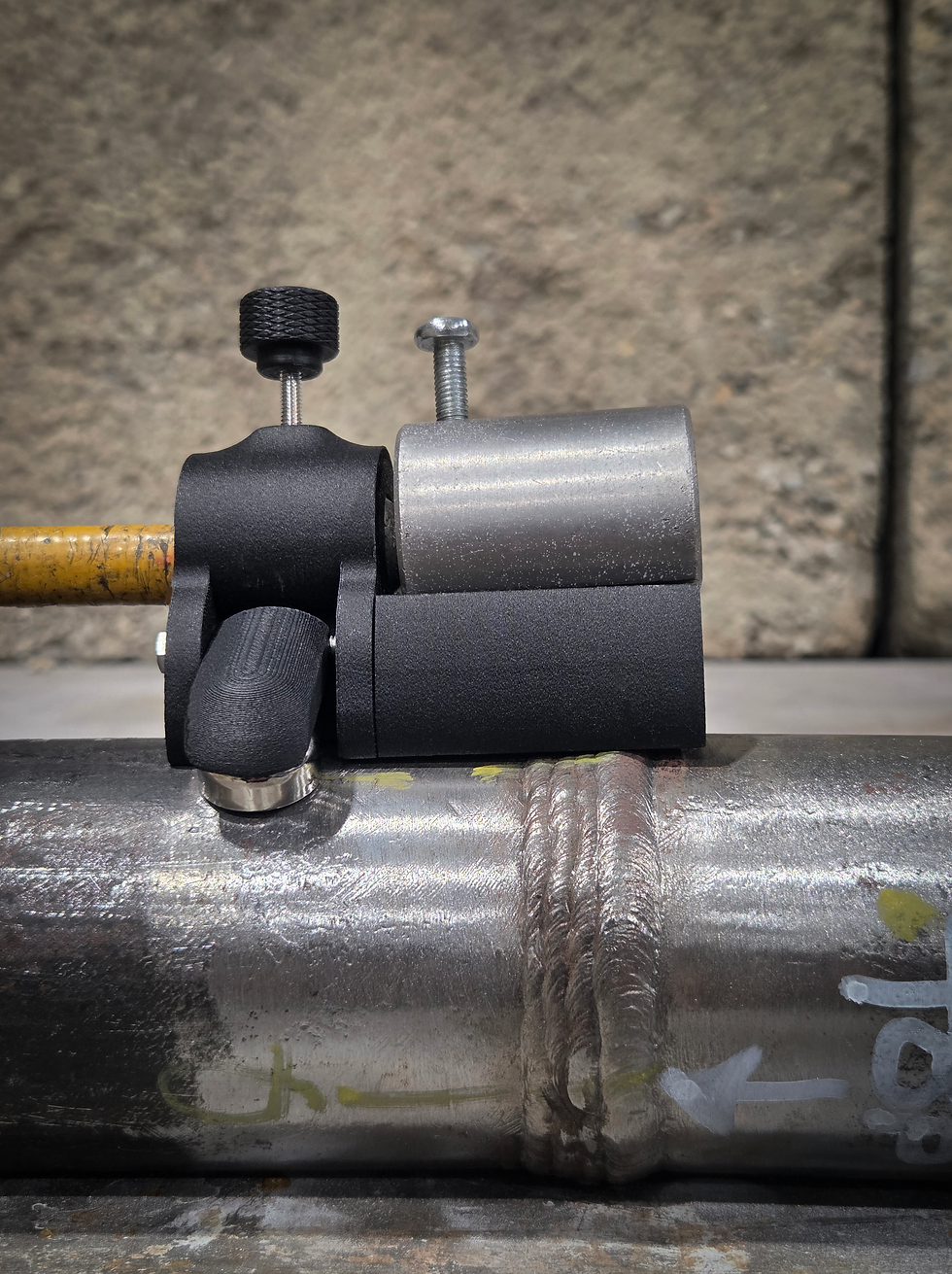

The UG Block provides a stable, repeatable mounting surface for your collimator—eliminating the need for improvised stands or supports and helping maintain consistent shot setups.

Key Features
Designed to reduce geometric unsharpness (Ug)
Increases SOD without adding OFD
Compatible with Sentinel-style fixed stop guide tubes
Rubber-lined insert accommodates tolerances in collimator diameter
Made from carbon fiber-reinforced nylon
Rigid, field-ready, and reusable

What's included in the Kit
1 × UG-Block (Guide Tube Placement Clamp)
2 × Film Placement Magnets
